Engineered Testing Units & Chemical Injection Skids for Oilfield Efficiency

ZESAH delivers high-performance modular skids and testing units designed for safety, reliability, and precise flow control.

Explore Skid Solutions

Testing Benches and Injection Skids

Pressure Test Benches

High Pressure Testing Equipments
Open Modal Box

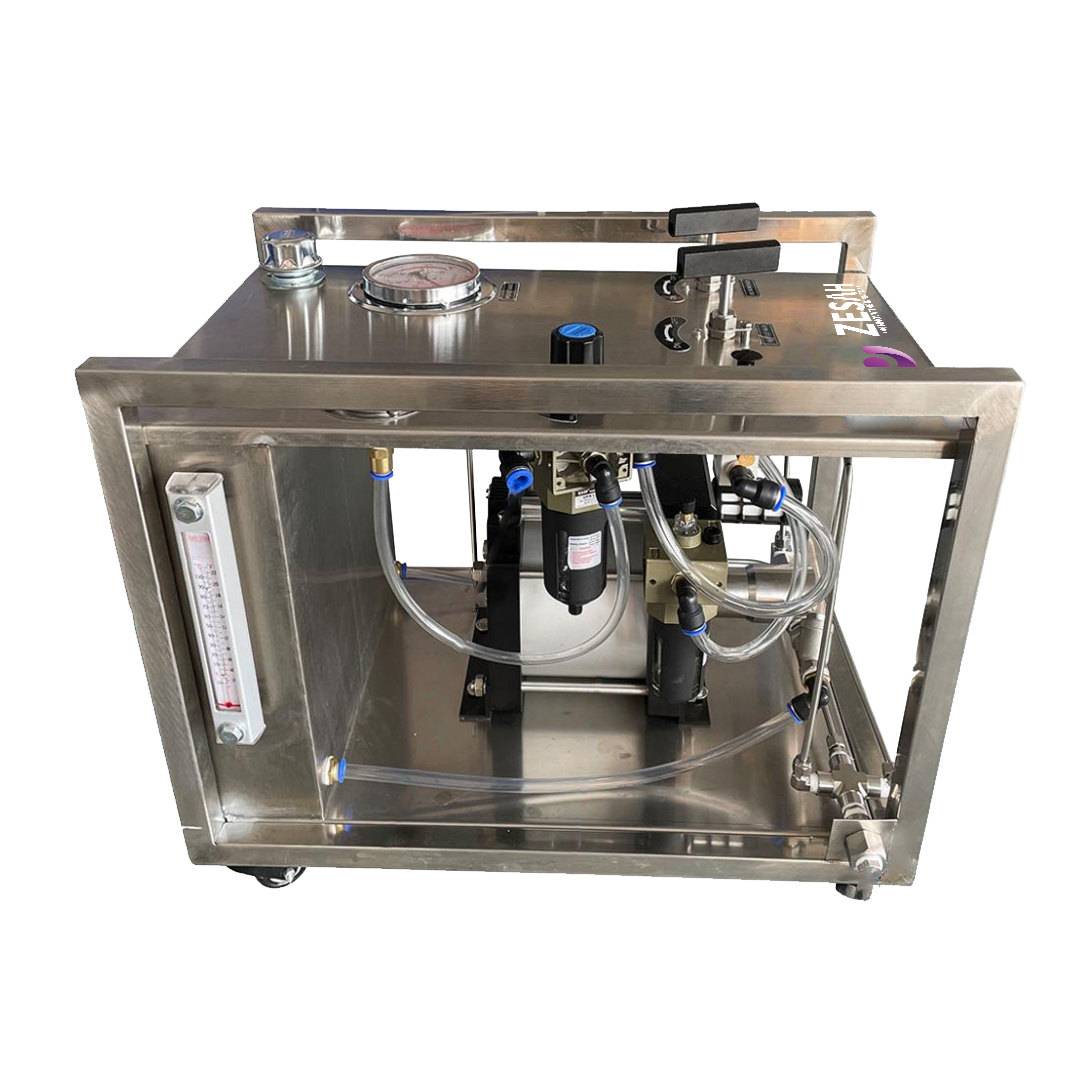

PRESSURE TEST BENCHES

Purpose:
Used to test the integrity, pressure capacity, and leak‑tightness of valves, fittings, hoses and pressure‑containing components.

Key Features:

  • Designed for hydrostatic and pneumatic pressure testing.
  • Available in manual, semi‑automatic, or PLC‑controlled configurations.
  • Equipped with high‑pressure pumps (air‑driven, electric, or diesel).
  • Pressure capacity up to 30,000 psi.
  • Integrated digital or analog pressure recording system for traceable results.
  • Includes safety enclosures, burst discs, and pressure relief valves.
  • Uses stainless steel tubing and fittings for corrosion resistance.
  • Provides low‑pressure filling and high‑pressure testing modes.
  • Compatible with water, oil, or nitrogen as test medium.
  • Fully skid‑mounted and portable for workshop or field testing.

Applications:

  • Testing of valves, flanges, BOPs, hoses, manifolds, and pipeline sections.
  • Factory Acceptance Tests (FAT) and Site Acceptance Tests (SAT).
  • Used in maintenance bases, OEM workshops, and offshore platforms.

Chemical Injection Skids

Chemical Injection Skid
Open Modal Box

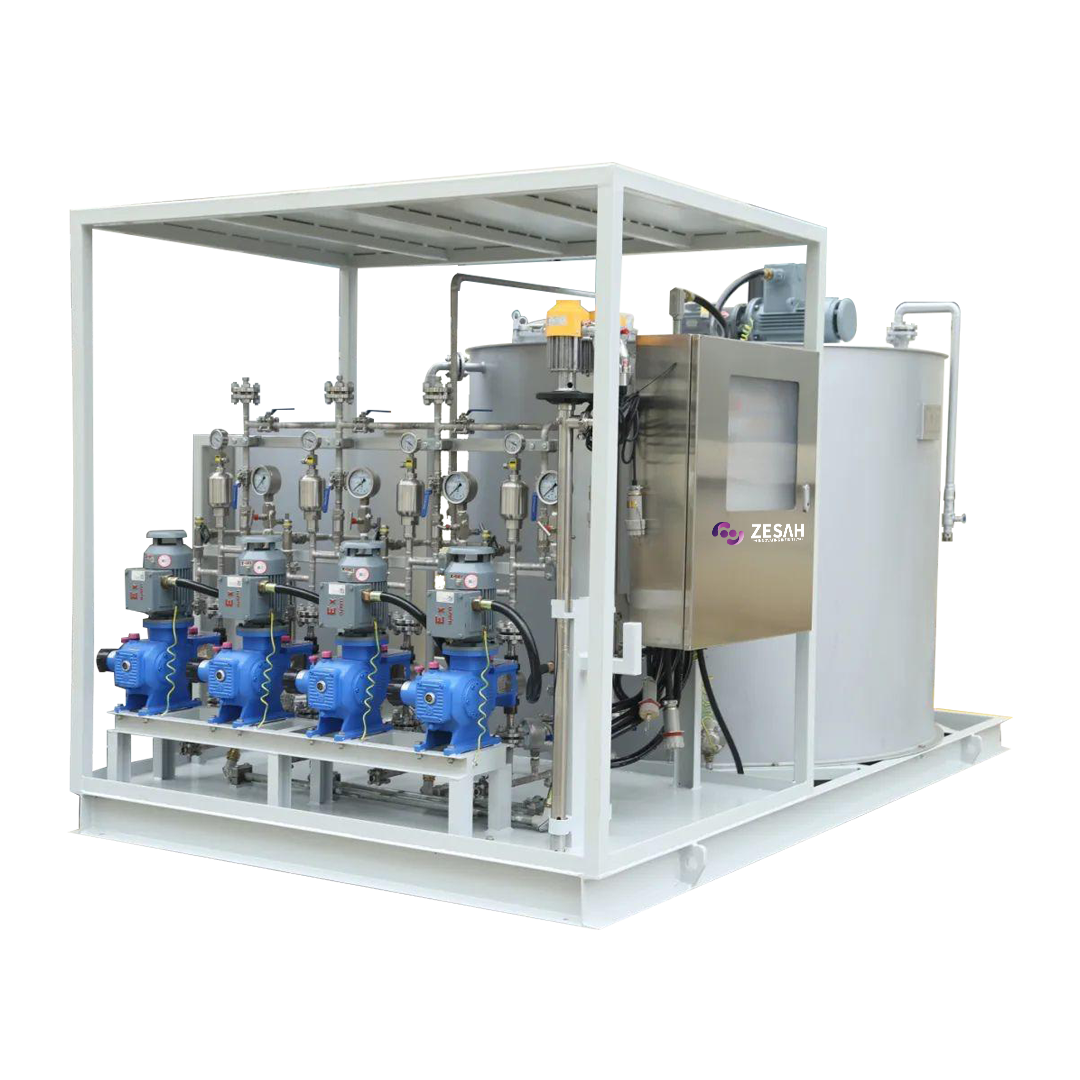

CHEMICAL INJECTION SKIDS

Purpose:
Used to inject precise amounts of specialty chemicals into pipelines and process systems for corrosion prevention, scale inhibition, and flow assurance.

Key Features:

  • Incorporates chemical dosing pumps (plunger or diaphragm type, API 675 compliant).
  • Flow rates typically from 0.1 to 500 LPH, with adjustable metering.
  • Pressure rating up to 15,000 psi, suitable for high-pressure injection lines.
  • Includes chemical storage tank (SS or FRP) with level gauges and drains.
  • Equipped with pressure relief valves, backpressure valves, and check valves.
  • Integrated flow meters, pressure gauges, and sample points for monitoring.
  • Material options: 316SS, Duplex, or Inconel, NACE MR0175 compliant.
  • Skid-mounted, pre-piped, and pre-wired for plug-and-play installation.
  • Manual, pneumatic, or PLC-based control systems for precise regulation.
  • Optional secondary containment and spill trays for environmental protection.

Applications:

  • Corrosion inhibitor, demulsifier, scale inhibitor, and methanol injection.
  • Used in production facilities, pipelines, and subsea injection systems.
  • Supports EOR (Enhanced Oil Recovery) and flow assurance operations.

High Pressure Testing Units

Test Bench
Open Modal Box

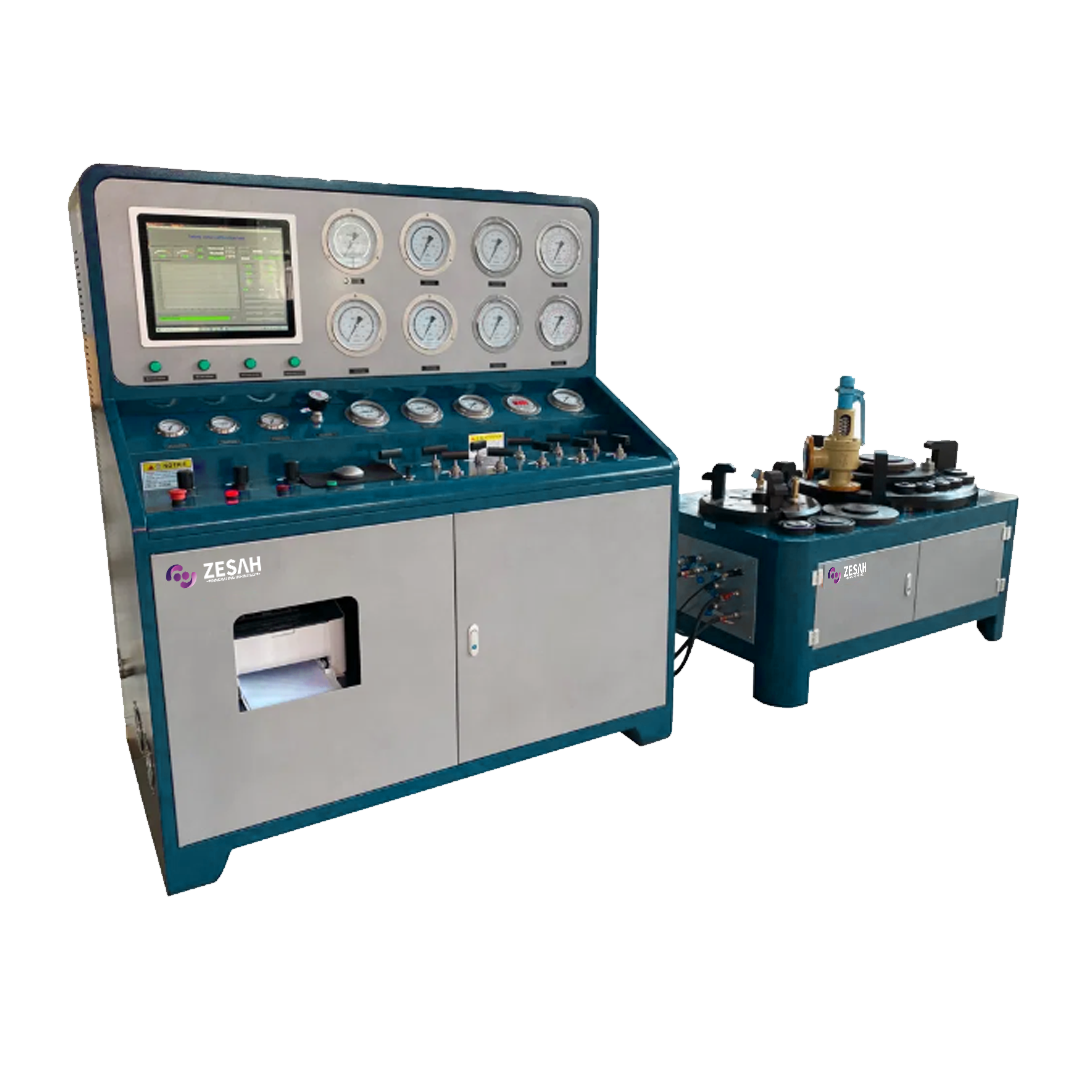

HIGH PRESSURE TESTING UNITS

Purpose:
Designed to generate and control high pressure for testing critical well control and production equipment such as BOPs, choke manifolds, and valves in the field.

Key Features:

  • Dual-pump configuration for low-pressure fill and high-pressure test modes.
  • Pressure capability up to 30,000 psi (depending on pump type).
  • Utilizes air-driven, diesel, or electric pumps.
  • Constructed as a compact skid or containerized unit for easy transport.
  • Equipped with precision gauges, pressure transducers, and recording instruments.
  • Provides hydraulic or manual control for pressure buildup and bleed-off.
  • Integrated pressure relief and check valves for safe operation.
  • Compatible with water, hydraulic oil, or glycol as test medium.
  • Includes hose reels, quick-connect couplings, and safety barriers.
  • Complies with API 16C, ASME BPVC, and other relevant standards.

Applications:

  • Hydrostatic testing of well control and flow control equipment.
  • BOP stack, choke manifold, and Xmas tree pressure testing.
  • Pipeline and vessel commissioning during installation or maintenance.
  • Used by service companies, testing contractors, and rig operators.

Test Manifold

Zesah catalogue
Open Modal Box

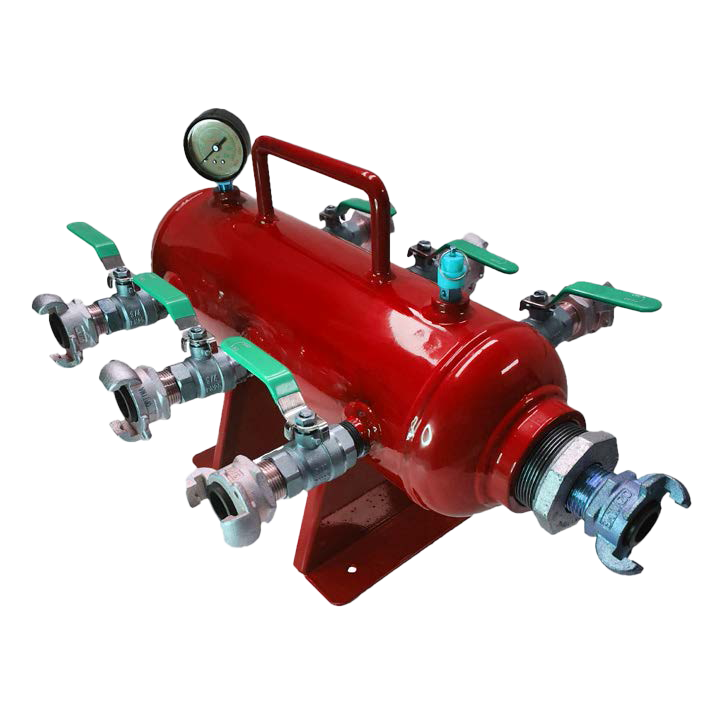

TEST MANIFOLD

Purpose:
Controls, directs, and measures the flow of produced fluids during well testing, cleanup, or production operations.

Key Features:

  • Designed for high-pressure service (typically 5,000–15,000 psi).
  • Fitted with gate valves and choke valves (fixed and adjustable types).
  • Provides multiple flow paths — test line, production line, and bypass line.
  • Equipped with pressure and temperature gauges, sampling points, and flow indicators.
  • Constructed from high-strength alloy steel, NACE-compliant for sour service.
  • Flanged, hub, or hammer union end connections per API 6A standards.
  • Heavy-duty skid-mounted frame for mobility and field use.
  • Optional hydraulic actuation for remote valve operation.
  • Fully hydrotested and function tested before deployment.
  • Designed for safe isolation and controlled flow regulation.

Applications:

  • Used during well testing and flowback operations.
  • Regulates and diverts flow to test separators, burners, or tanks.
  • Monitors pressure, temperature, and flow rate of produced fluids.
  • Essential for production evaluation and well performance analysis.

Design & Engineering Capabilities

High-Pressure Hydro Testing
Designed to API, ASME, and NACE standards
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
Leak Testing
Custom layouts based on operational and spatial needs
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
Load & Pressure Validation
Skid frames with lifting lugs, forklift slots, and weatherproof enclosures
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
Dimensional & Tolerance Verification (1)
2D/3D CAD models and P&ID documentation
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
factory (1)
Fully in-house fabrication and testing
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Applications

Offshore and Onshore Oil & Gas Platforms

Well Stimulation & Acidizing Units

Pipeline Cleaning and Preservation

Methanol, Scale, and Corrosion Inhibitor Injection

Pressure Testing of Valves, Hoses, and Vessels

Commissioning and Plant Shutdown Operations

Why Choose ZESAH?
trustworthiness (3)
Tailored solutions for specific pressure and chemical applications
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
review (1)
Industry-compliant and
field-tested systems

Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
Position your company as a quality-driven leader
Experienced engineering and quality assurance teams
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
Document Development
Full documentation and training support
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.
globe (2)
  Fast delivery timelines and global logistics capability
Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Certifications & Compliance

ISO 9001:2015 Certified

ASME & NACE Standards Compliance

ATEX/IECEx Certified Options (upon request)

Full FAT, SAT, and Third-party Inspection Support
